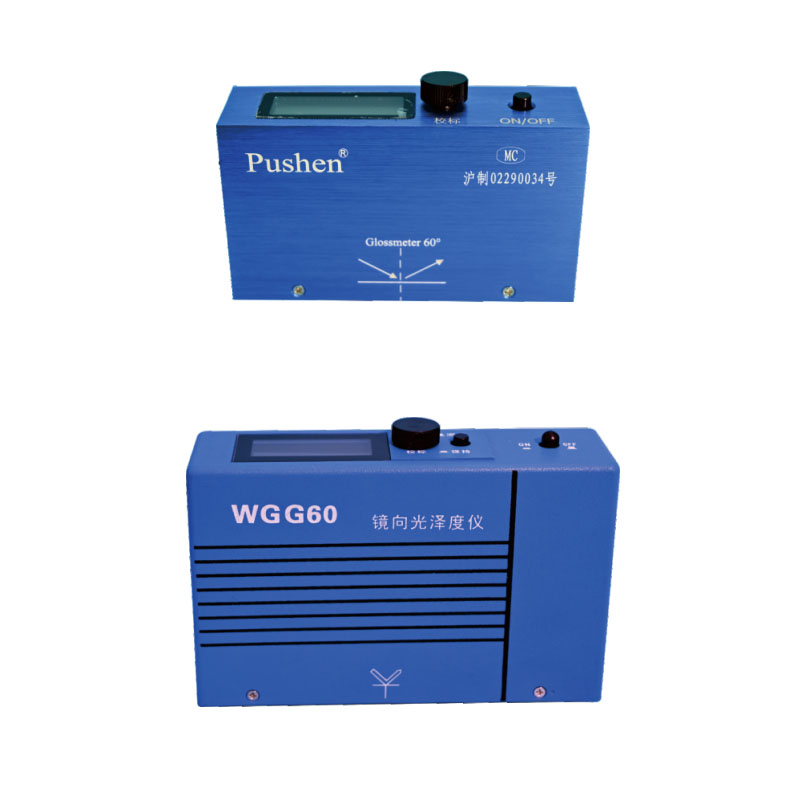

WGG-60 Single Angle Glossmeter
It has the characteristics of small size, convenient portability, stable performance, and high accuracy.
Used to measure the surface glossiness of coatings, paints, and other materials.
Standard
GB/T 9754
ISO 2813
Technical Parameter
Model and product name | WGG-60 Battery | WGG-60 Charge |
Order number | PS 2600 | PS 2601 |
Measuring range | 0-199.9 GU | 0-199.9 GU |
Resolution accuracy | 0.1 GU | 0.1 GU |
Illumination angle | 60° | 60° |
Stability performance | ±0.4 GU | ±0.4 GU |
Indication error | ±1.2 GU | ±1.2 GU |
Spot size | 10×20 mm | 10×20 mm |
Window size | 54×11 mm | 35×17 mm |
Input voltage | No.5 battery | 9V rechargeable battery |
External dimensions | 114×32×64 mm | 160×46×100 mm |
Shipping weight | 0.5 kg | 1.5 kg |
Shipping List
WGG-60 Single Angle Glossmeter, Black and white calibration board, Instructions
